SPECIFICATIONS

Assembly Mode: Hidden Type

Audio Recorded: No

Battery: built-in

Brand Name: JuinCar

Built-in Screen: No

Camera Resolution: 1920x1080

Certification: None

Chipset Manufacturer: Hisilicon

Display: IPS

Frames Per Second: 30

GPS logger: None

Hign-concerned Chemical: None

Imaging Sensor: Sony IMX307

Interface: TV-Out

Item Type: Car DVR

Loop-Cycle Recording Feature: YES

Max External Memory: 128G

Memory Card Required Reding Speed: Class 10

NightShot Function: YES

Number Of Lenses: 1

Origin: Mainland China

Original Package: YES

Pixels: 200Mega

Power Source: Corded Electric

Rear Camera: None

Screen Ratio: None

Special Features: G-Sensor,Real Time Surveillance,Wide Dynamic Range,wifi function,Parking Monitor

Touch Screen: No

Video Code: H.264

Video Format: MOV,MP4

View angle: 170°

Package Include:

1 x User Manual

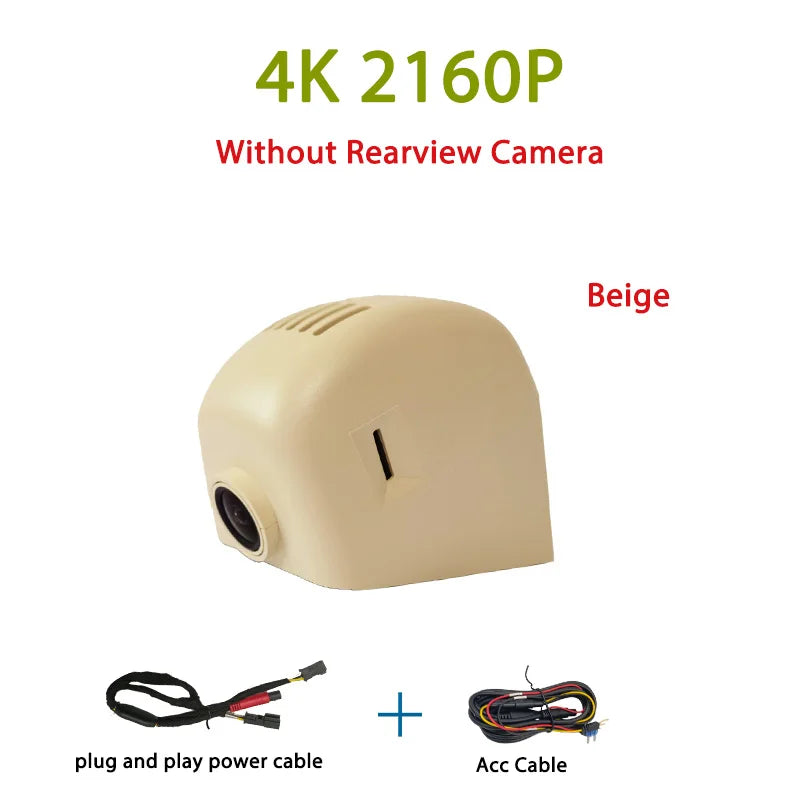

1 x Car DVR

1 x Standard ACC Power Cable

1 x Rain Sensor Cable

Dear friend,Please read me before you make order.

1、because the driving recorder in this store is a special model for special vehicles. you need to provide the model and year when you buy,and take some photos of the original rearview mirror shell to the customer service stafffor verification.we will reply you as soon as possible. thanks for your support.

2、Tip: rain sensor power cable can only be used in 50% of specific vehicles. we will give you a default rain sensor power cable for you,let you try install. if the interface is not consistent, please use standard accpower cable for install. if you are unsure if it is suitable for your car install, please send us your car rainsensor power cable interface,we will verify if it is suitable for your car install.

3、Important Note: we will ship goods to you after receiving your information.

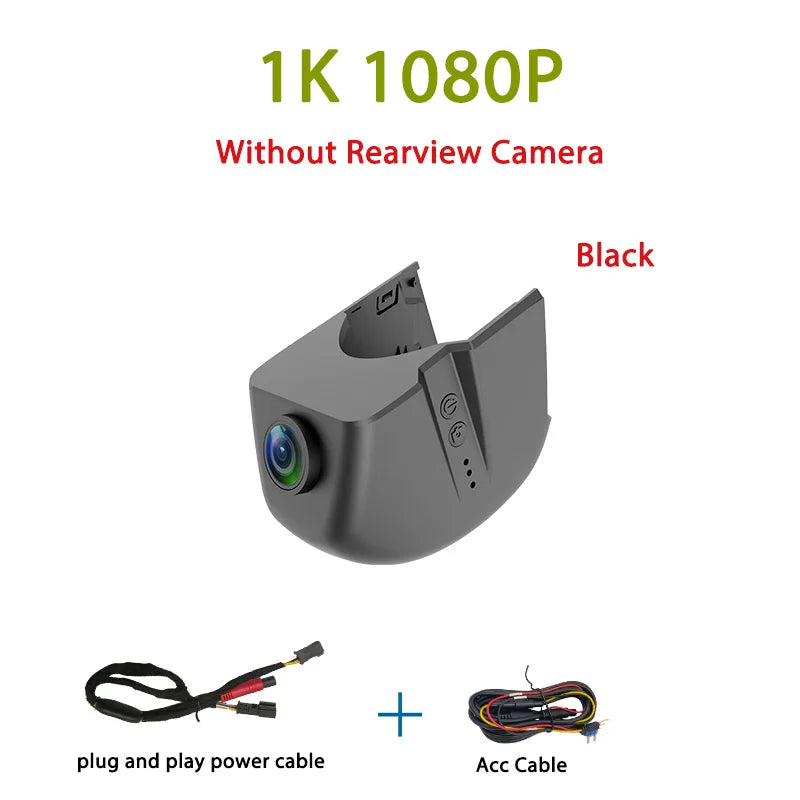

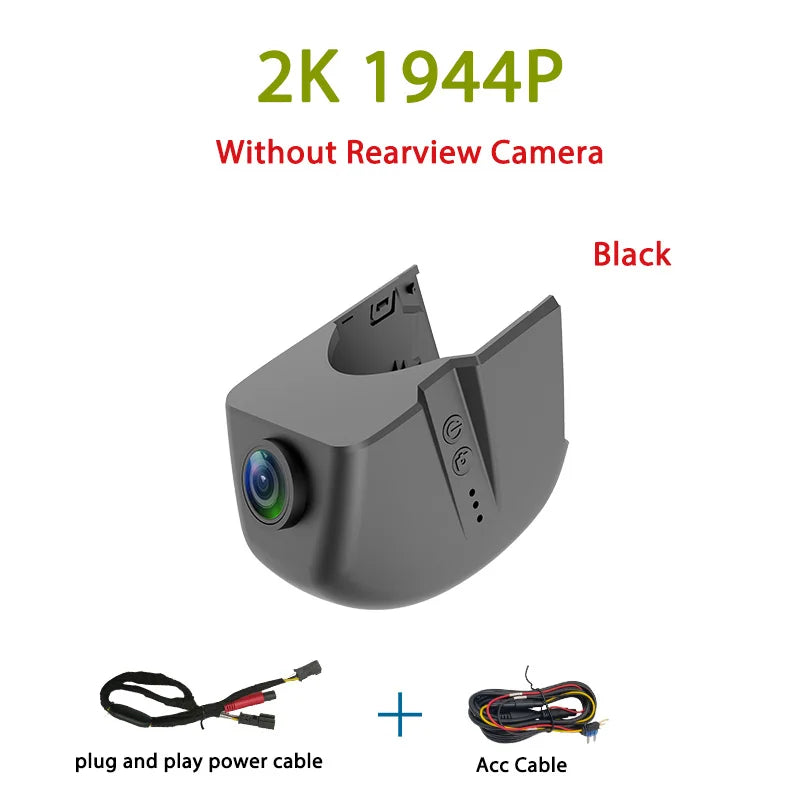

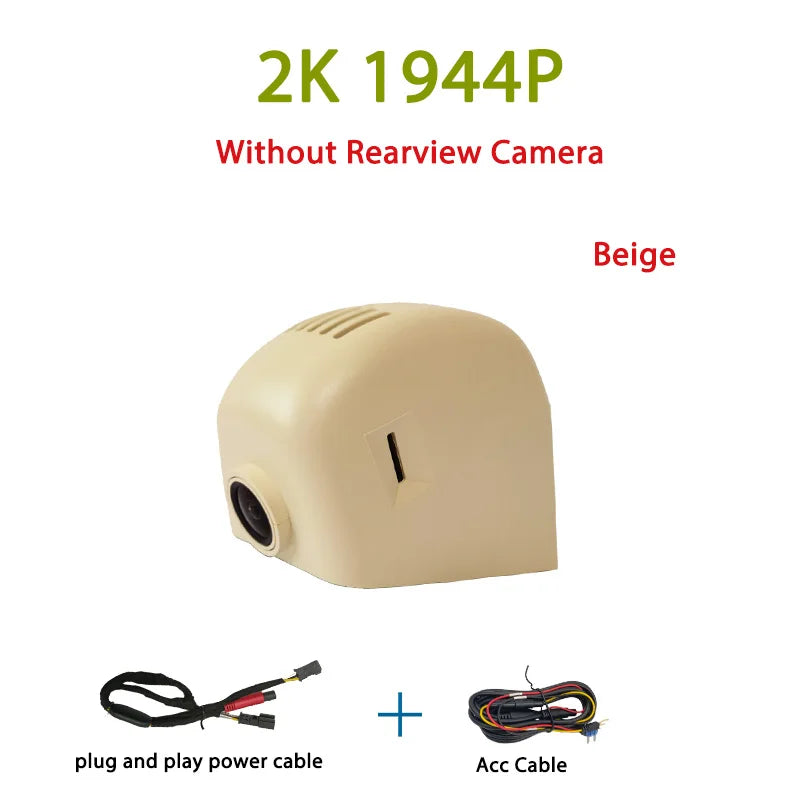

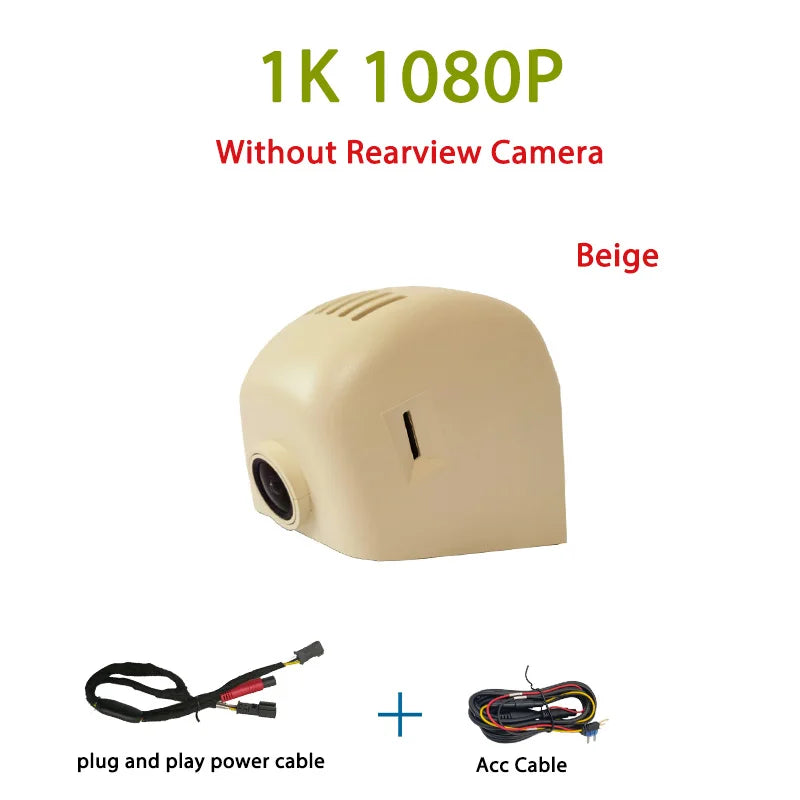

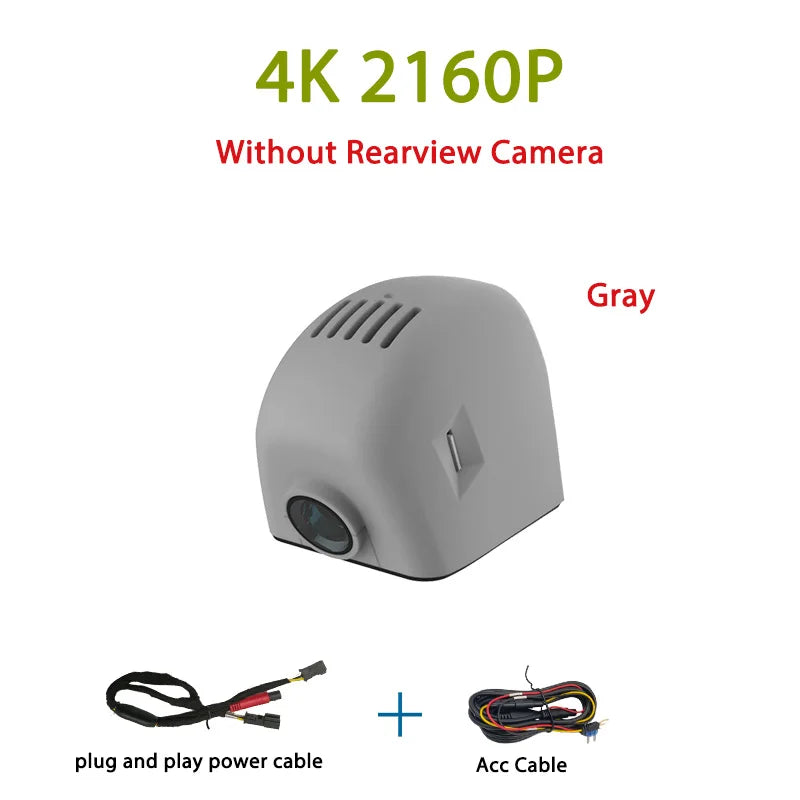

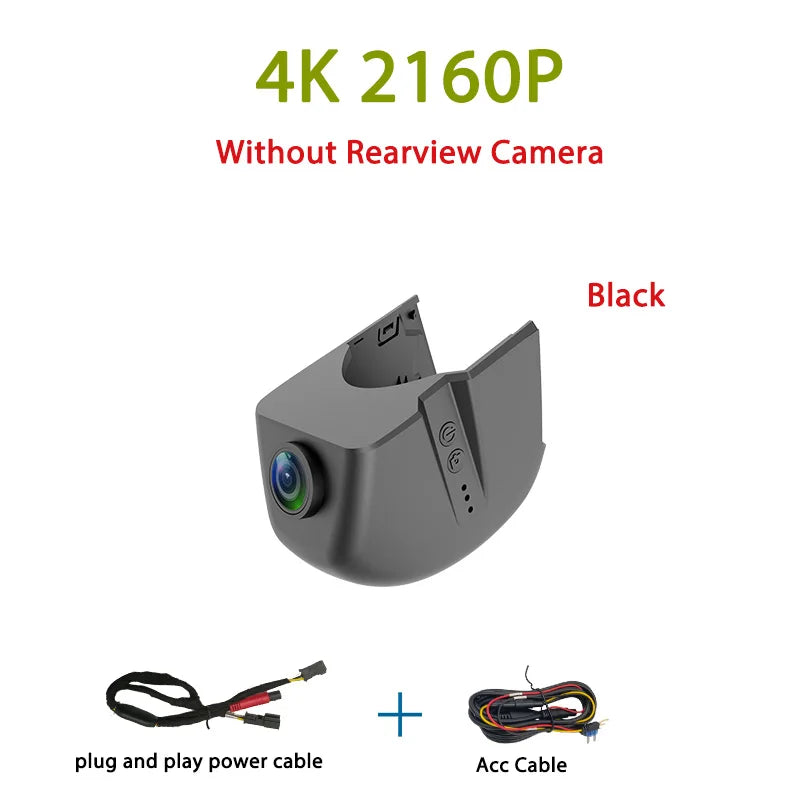

1K/2K/4K Dash Cam Specific Features:

1.Chip: Novatek

Max External Memory: 128G

Battery Life: Connect to the Reading Light or Rain Sensor or Fuse Box

Video Format: Mp4

Interface: Wi-Fi; Micro SD/TF

2.Special Features: New plug and play(Option); WIFI Function ; Night Vision ; Auto Power; G-sensor; Microphone; Anti Surge Voltage Impact; Anti Vibration; Real Time Surveillance; Cyclic Recording; Automatic White Balance; Wide Dynamic Range

3.OSD Language: English

4.APP: Please download " TimaCam " or "RoadCam" APP from Apple Store or Google Play Store.The Wifi name is : CarDV_XXX ; The password is : 12345678

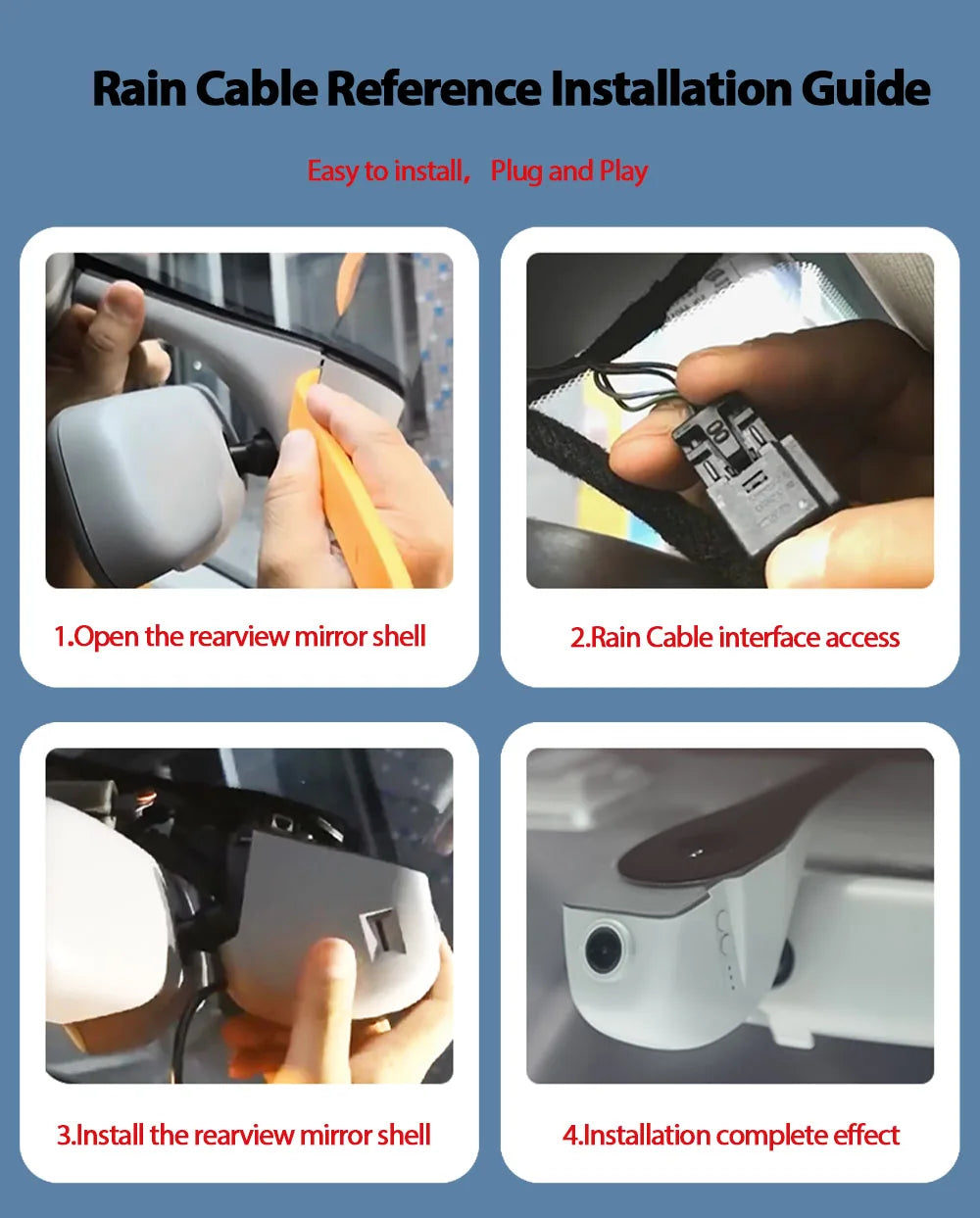

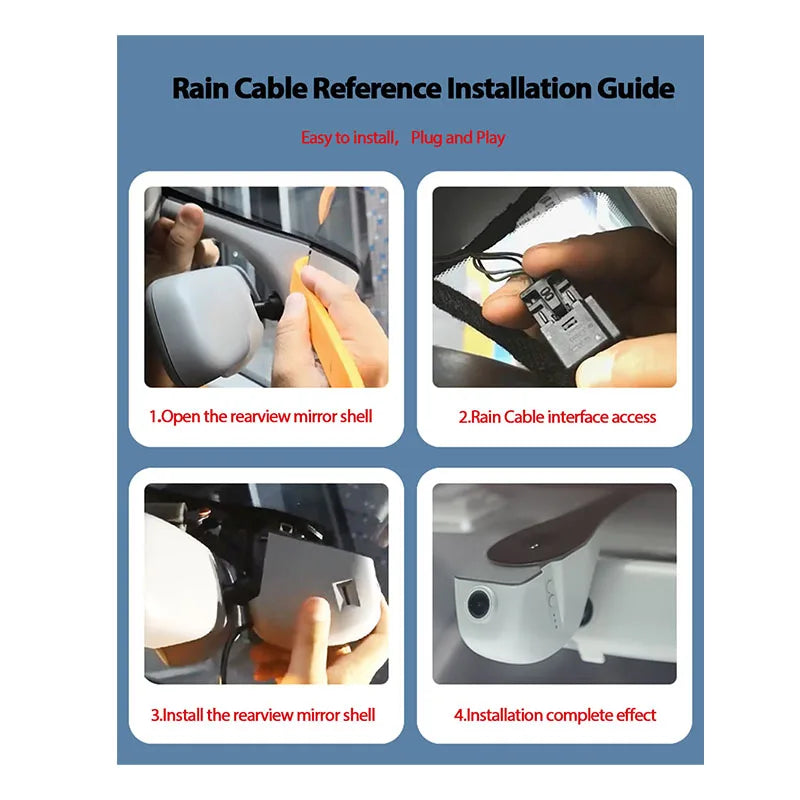

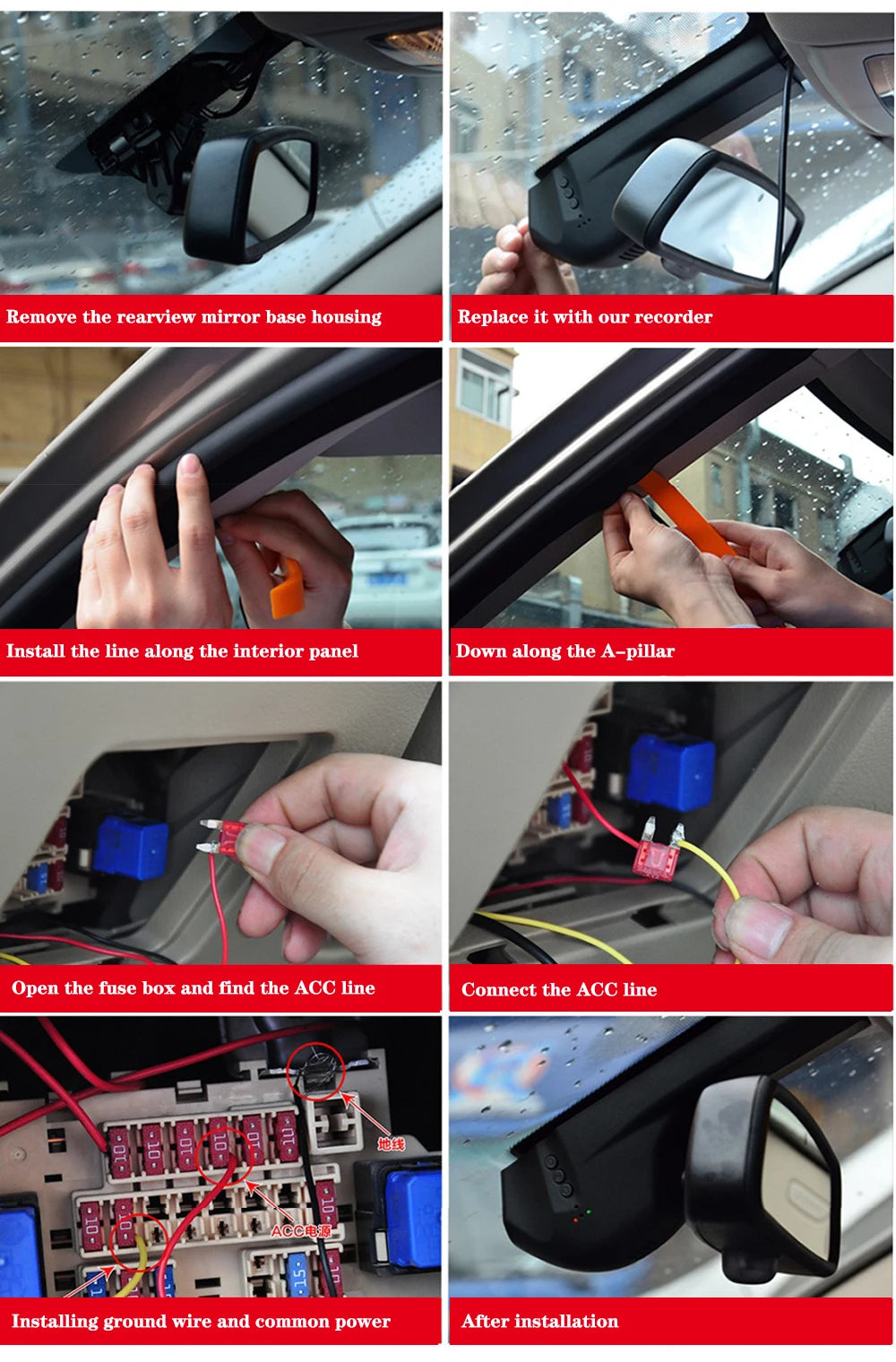

Rain Cable Reference Installation Guide

Easy to install，Plug and Play

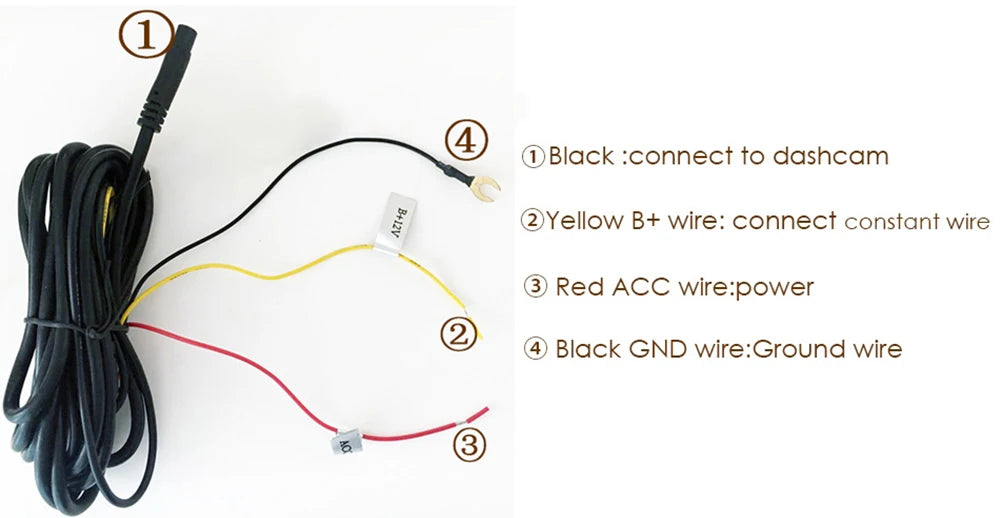

Standard Acc Power Cable Reference Installation Guide：

1. Before installationFirst test: the red and yellow wire harnesses of the recorder are connected to the positive electrode of the battery, the black wire is connected to the negative electrode of the battery, the indicator light of the recorder lights up, and the test is completed!

2. Installation

The red wire is connected to ACC, the yellow wire is connected to constant electricity, the black ground is connected, You need an electric pen to measure ACC and constant electricity.

(1)Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is off. it is ACC.

(2) Turn on the engine---The indicator light of the electric pen is on, Turn off the engine---The indicator light of the electric pen is on. it is constant electricity.

3. After installation

The memory card needs to be formatted before use, and it must be turned off before removing the card each time (the indicator is off when the indicator is off).

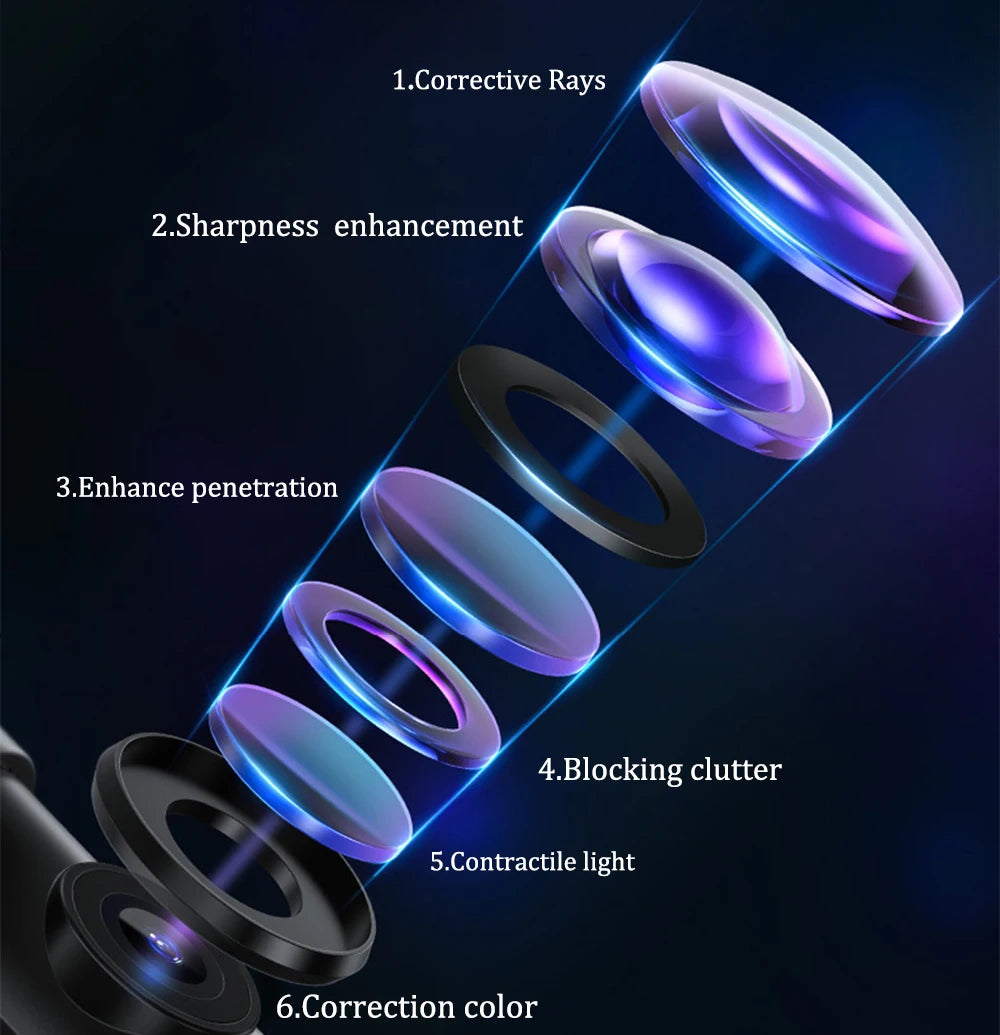

Six Glasss HD Lens

6-layer full glass lens, F2.0 large aperture

Adopt 6-layer full-glass high-definition camera,

F2.0 large aperture is larger than F2.4, and better quality in low light environment

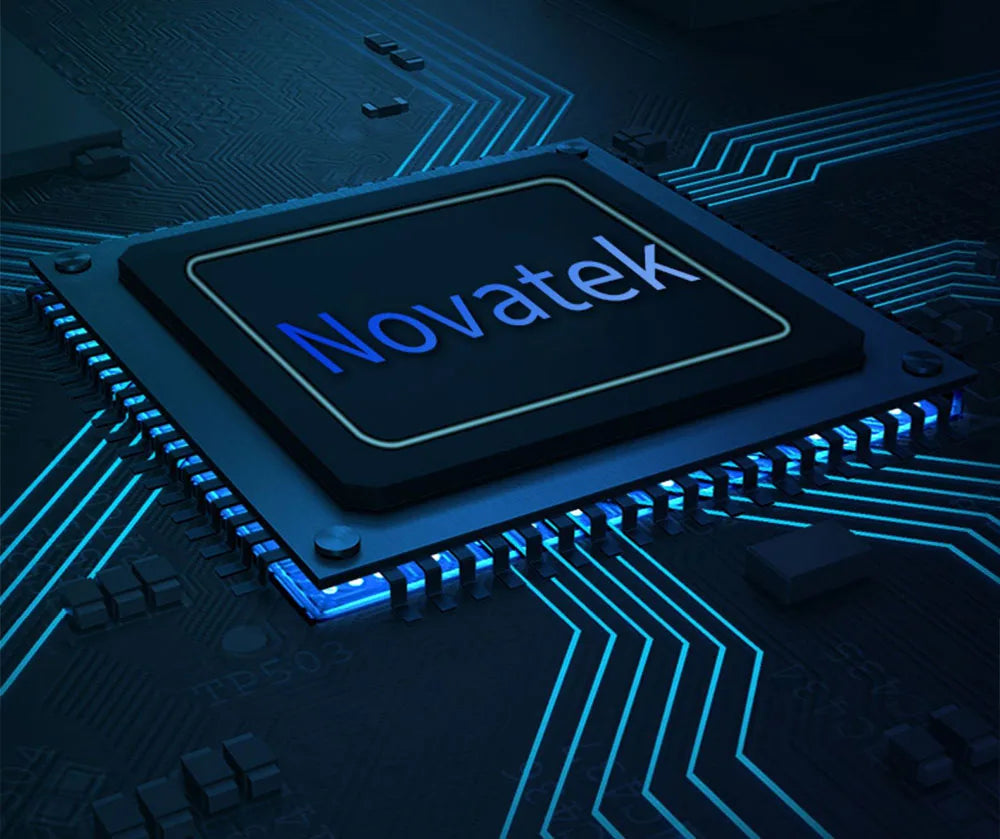

Main Control Chip

Support 128GB Memory Card

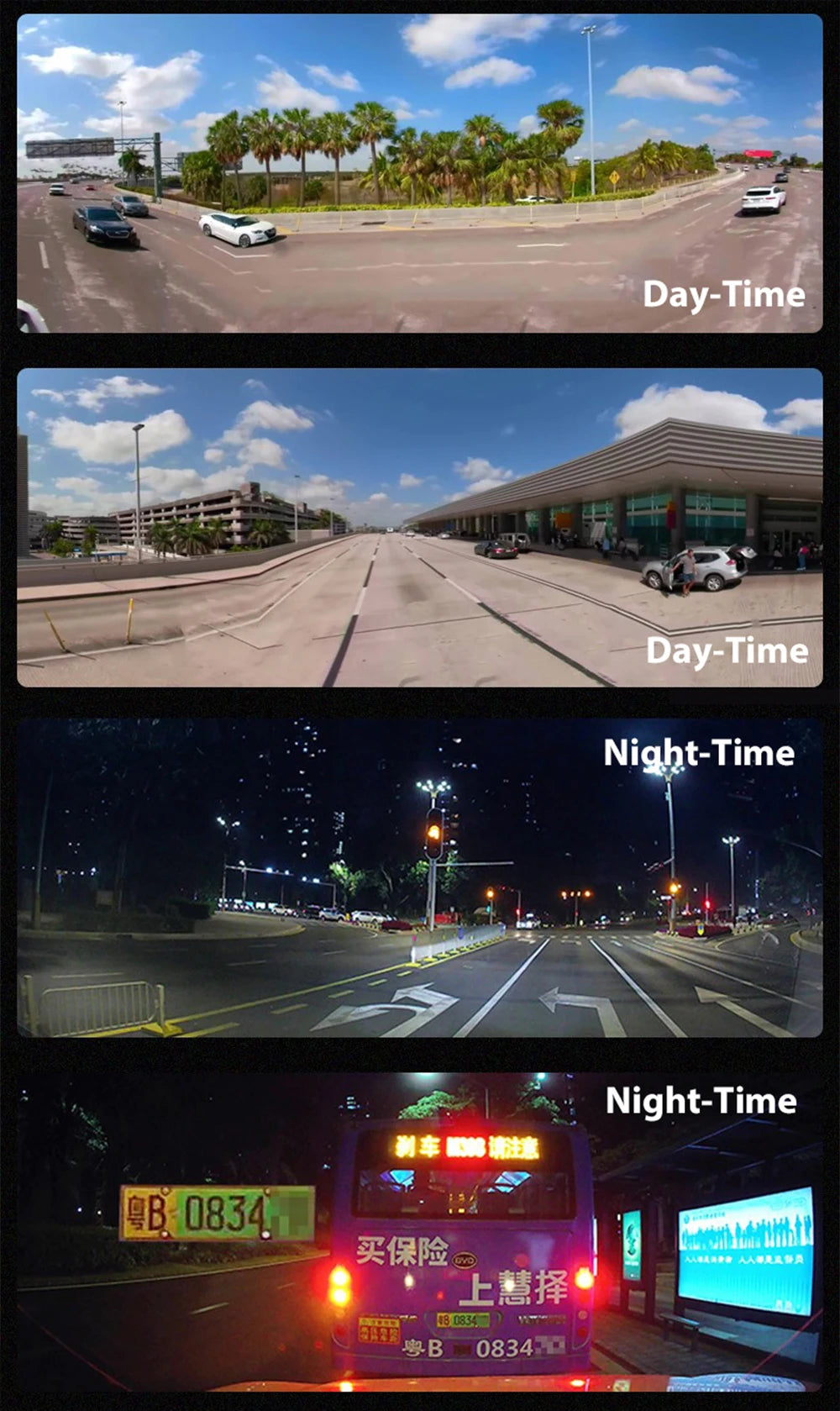

Real Video Display In the Day-time and Night-time

WDR Wide Dynamic Video Technology

WDR technology can adjust exposure balance, enabling the camera to pick up greater detail in darkness and highlights, allowing the dash cam to process more light on the sensor and produce a more vibrant image.

HDR technology can help you capture clearer and more stable images in the dynamic process.

When a violent collision occurs, the emergency backup recording function is

automatically recognized and activated, and the important evidence locking

protection is stored in the memory card to prevent loss of coverage.

Video segmentation recording, when the video is full, the recorder will automatically

delete the previously recorded video clips and record them in a loop, so that you

don't have to worry about card changes.

24-hour Parking Monitoring
